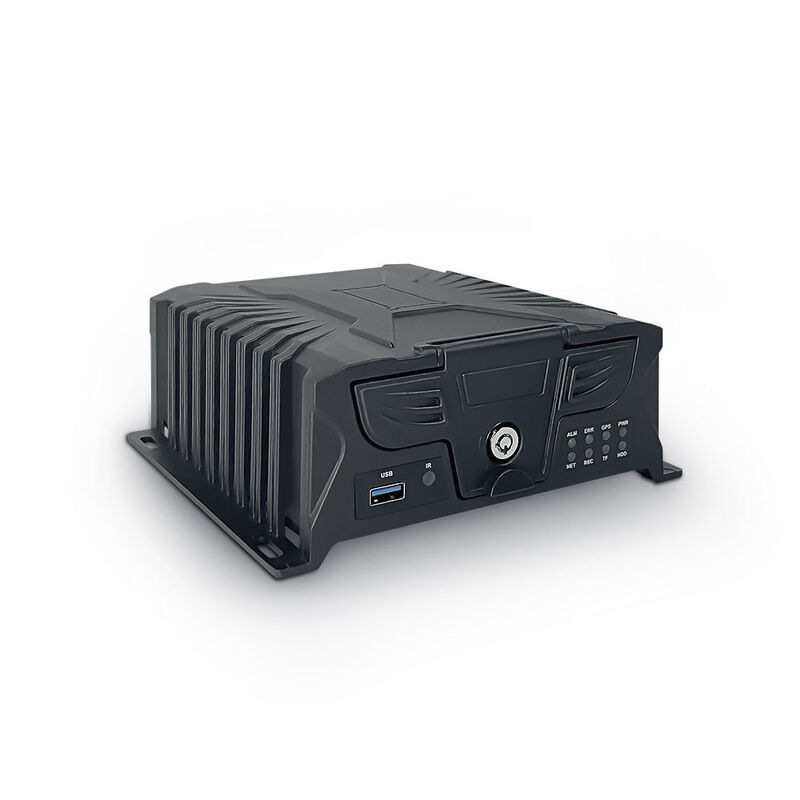

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Detalhes do produto:
| Lugar de origem: | Shenzhen |
| Marca: | Oxiang /OEM |
| Certificação: | CE.RoHS,FCC |
| Número do modelo: | MD264 |
|
Informação detalhada |
|||
| Rede: | Wi-Fi de 2,4 GHz (IEEE 802.11 b/g/n) | LED vermelho piscando: | Energia OK, aguardando conexão WiFi |
|---|---|---|---|
| Tipo de energia: | Bateria recarregável 18650 ou fio rígido AC12V-24V | CONSUMO: | Modo de trabalho: 170mA Modo de espera: 200μA |
| Peso: | 600 g | Faixa de captação: | 5 metros |
| Umidade de trabalho: | < 95% | Função da mensagem: | Mensagem dos apoios que sae da função |
| Obturador: | 1/25 ~ 1/100.000 por segundo | UMIDADE RELATIVA: | 85% sem condensação |
| Distância do IR: | 3 metros | Sensor de imagem: | SC2335/SC233A |
| Ângulo horizontal: | ângulo 140 horizontal | Ângulo de detecção: | 110° |
| Função: | 3G/4G/GPS/WIFI | Poder: | DC12V/2A |
| Ajuste da imagem: | Suporte Espelho de Suporte HD/SD | Taxa à prova d'água: | IP55 |
| Câmera: | 1 mega pixel, OV9732 (grande angular de 125°) | Grande angular: | 130 graus |
| Tamanho da tela: | 7 polegadas | Resolução de entrada da câmara: | AHD1080P/720P/CVBS |
| Tipo de sensor: | Contagem video, precisão de 98% | Dimensão do host: | 200(C) x187(L) x62(A) mm |
| Compressão: | H.265 | Entrada de tensão: | adaptar-se a 8 a 36V ultra-largo |
| Suporte de software: | CMSV6 e a nossa plataforma privada | Garantia: | 12 meses |
| SDK: | SDK gratuito para segundo desenvolvimento | Transferência de WIFI: | Apoiar |
| Interface de operação: | Interface gráfica do usuário (menu OSD) | Personalização: | Sim |
| Impermeável: | IP69K | À prova de choque: | Antivibração dupla |
| Funções: | Contador de pessoas, 3G, GPS, sensor G, UPS | ||
| Destacar: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Descrição de produto
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.

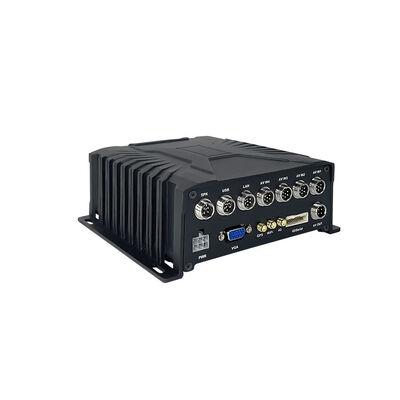

- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
